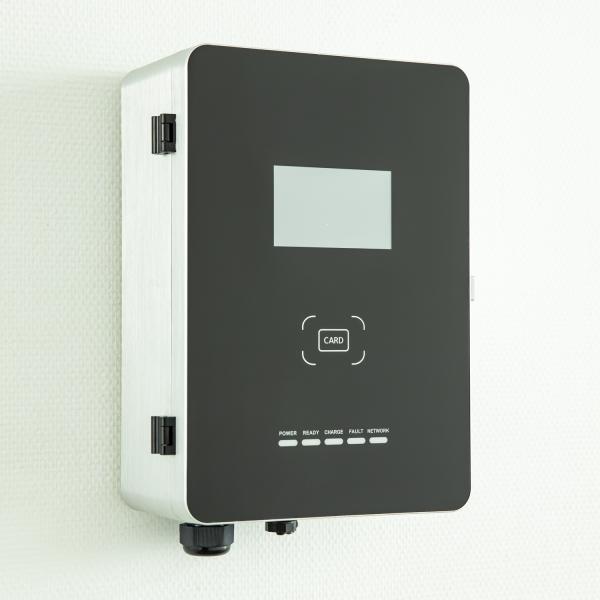

RFID Electric Vehicle Home Charger 60Hz LED Indicator 22KW

Brand Name : Chargecore

Model Number : AC003

Certification : CE,UL,TUV

Place of Origin : Nanjing, China

MOQ : 1

Price : negotiation

Payment Terms : T/T, L/C

Supply Ability : 500 pieces per month

Delivery Time : 20-45 days

Wall Box Dimension : H32*W21*T14cm

Cable length : 4 meter

Screen : 5 inch LCD

Input frequency : 50Hz/60Hz

Packaging Details : carton

Contact Now

7/22kw Emergency Stop/LED Indicator/RFID Two Years Warranty AC EV Chargers

1. Have high voltage charging gun of European standard, American standard and Japanese standard. It can generate different charging configures according to customers’ requirements.
2. Modular design, adapt to customers’ needs.
3. OCPP communication protocol
4. Have open, shareable data service platform and management platform (cloud platform)
5. Have protection functions such as input under voltage, input overvoltage, output short-circuit, output overvoltage, output overcurrent, battery reverse connection, insulation detection, communication failure, etc.

Specifications

Appearance
Rated power
Type 2: 7/22kw
Type 1: 9kw
Input Voltage
Single phase:230V±10%
Three phase:400V±10%
Output Current
Type 2:7kw-single phase 32A
22kw-three phase 32A
Type 1:9kw-single phase 40A
Functional Features
User Interface
Emergency Stop/LED indicator/RFID
Safety Features
Overvoltage/undervoltage protection, overload protection,
leakage protection, Overcurrent protection
Communication
Internet Interface
Ethernet(WIFI, 3g/4gLTE as optional)
OCPP
OCPP 1.6J
Working environment
Working latitude
<2000m
Working temperature
-30° C～+55° C
Working humidity
5 %~ 95%
Protection level
IP55
Cooling
Natural cooling
Safety standards
IEC61851-1/2017
Special protection
Anti-UV protection


6. Have an external running indication, which can display the real-time status.
7. Wide range of AC output voltage, high suitability of utility grid, three phase three wire input without null line in the rectifier unit.
8. Has the function of protocol self-recognition, can realize the charging for electric vehicles without limitation of brand.
9. Compatible with coaches and cars charging function.
10. One pile can charge multiple vehicles, and take turns to charge automatically by applying automatic switch function between charging according to the charging power and according to time. It can automatically judge whether the battery is full, one charging pile can meet at least five vehicles charging service task one night.
After-sale Service
1. Two years warranty for all parts. If any parts break during the period, we will provide free replacement.
Non-quality factor damage is not included.
2. One to one technical engineer support for installation&operation and communication connection assistance
between your app and our OCPP platform.
